Newport Power Meter 2935-C with 2 Photodiodes Newport 918D-SL-OD3 + 818P-010-12
PM-2935-C
Used
Newport- Power Meter - Model 2935-C
+Photodiode Newport 918D-SL-OD3
+M-VPH-4 Standard Optical Post Holder with NEWPORT 818P-010-12 Power Detector
Tested and fully fonctional.
More info
Newport Power Meter 2935-C with 2 Photodiodes Newport 918D-SL-OD3 + 818P-010-12
Newport- Power Meter - Model 2935-C tested with the Photodiode Newport 918D-SL-OD3 and is fully fonctional.
The model 2935-C optical meter is a 2-channel input optical meter compatible with all Newport detectors having a 15-pin D-sub type connectors.
The offer includes :
- Newport- Power Meter - Model 2935-C.

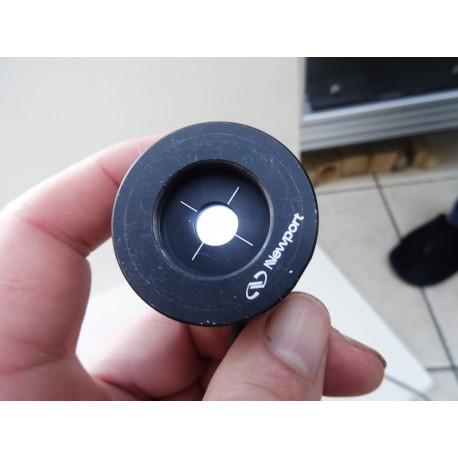

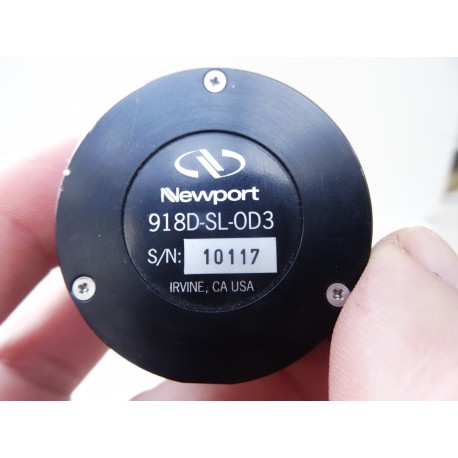

- Photodiode Newport 918D-SL-OD3.
- NEWPORT 818P-010-12 Power Detector.
- M-VPH-4 Standard Optical Post Holder.

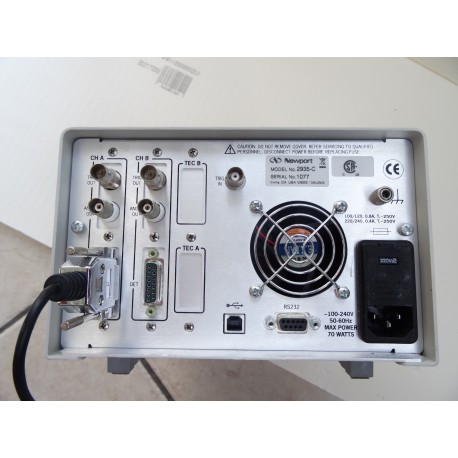

Newport Power Meter 2935-C :
-
Dimensions: 5.25 x 12.11 x 8.50 in (133 x 308 x 216 mm)
-
Enclosure: Metal case, painted
-
Connectors:
- Optical Detector 15-Pin D-Sub
- TEC 15-Pin D-Sub (optional)
- BNC Analog Output
- Trigger Output
- Trigger Input
- 9 Pin D-Sub RS-232
- USB Host
- USB Device
-
Power:
- 100 / 120 / 220 / 240 VAC
- 50 / 60 Hz
- 70 Watts
-
Display: Graphical LCD ¼ VGA, 5.7 in diagonal
-
Display Update Rate: 20 Hz
